MCX312-2-Axis Motion Control IC with interpolation

MCX312
MCX312 is 2-axis motion control IC which can independently control 2 axes of either stepper motor driver or pulse type servo motor for position and speed control. In addition, it can perform 2-axis linear, circular and bit pattern interpolation (bit pattern interpolation is executed by bit data from CPU). Multichip axes linear interpolation is also possible.
  • 2-axis linear / circular /continuous interpolation
  • Parabolic S-curve / trapezoidal acceleration / deceleration driving.
  • Automatic deceleration for non-symmetrical trapezoidal drive.
  • Integral filter for input signal built-in.
  • Multichip axes linear interpolation.
  • Maximum drive speed    4Mpps
  • 100-pin plastic QFP type.

Circular / linear / continuous interpolation

Continuous interpolation executes the sequence of interpolation drive continuously; drive will not stop, by writing the next interpolation data during current interpolation node.

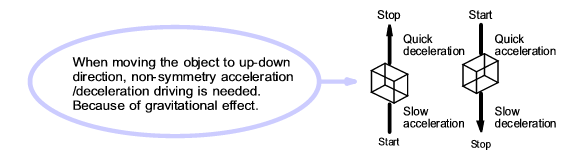

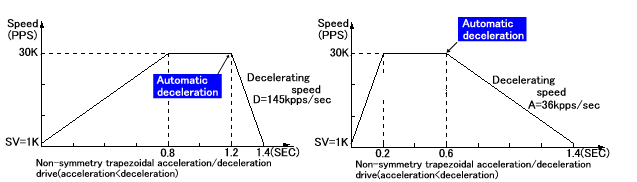

Automatic deceleration for non-symmetrical trapezoidal drive

In non-symmetrical trapezoidal acceleration/deceleration drive whose accelerating and decelerating speed are different, automatic decelerating can be executed. There is no need to set the start point of decelerating by manual.

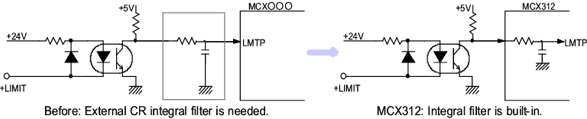

Integral filter for input signal built-in

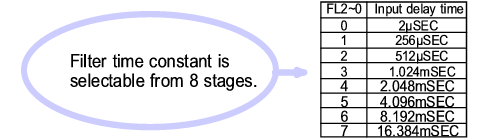

It is possible to set for each input signal whether the filter function is enabled or the signal is passed through.
